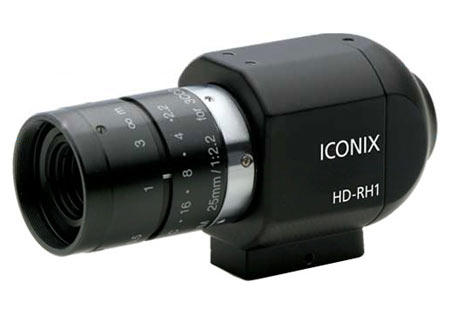

MINI CAMERA HD-RH1 ICONIX
Du mini vraiment mini la HD-RH1 d’Inconix, une caméra HD capable de filmer en Full HD (1080p) en triCCD, idéal pour certains plateaux ou des installations vidéo a multi caméras.
HD-RH1 Specifications:
Image Sensor
1/3-inch Progressive CCD
Optical System
1/3-inch 3-CCD Prism
Limiting Resolution
900 TV Lines (1080i/p) 700 TV Lines (720p)
Lens Mount
C-Mount
Scanning Systems
720p / 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
1080i / 50, 59.94, 60 Hz
1080p / 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
525i / 59.94Hz
625i / 50Hz
Sensitivity f8 / 2000 lux
Signal/Noise Ratio
>60dB, Y Channel
Quantization Processing
14-bit
Gamma
On/Off, Five-Variable User Adjustable
White Balance
Automatic (AWB) or Manual
Black Balance
Automatic (ABB)
Shading Correction
Automatic
Gain
0 dB to 18 dB, Manual or Fixed
Electronic Shutter
Automatic or Fixed
Scene File
3 User-Programmable Profiles
Sync System
Internal or Genlock to Tri-Level Sync
Output Signals
RGB/YPbPr: BNC x 3, IVpp. 75 Ohm Sync on Y/G or YPbPr/RGB
HD-SDI (SMPTE-292M): BNC x 2 Two Single-Link 4:2:2 or Dual-Link 4:4:4 (RGB or YPbPr) or Dual-Link 4:2:2 (1080p50/59.94/60)
DVI-1
Input Signals
Genlock: BNC x 1, Tri-Level Sync
Remote Control: RS-232, DSUB-9
Power Requirements
12VDC, 30W
Weight
Head: 2.3 oz. (64g)
Controller: 2.6 lbs. (1.2 kg)
Dimensions
Head: 1.32”W x 1.50”H x 1.92”D (33.5 x38 x 48.8 mm) Controller: 8.4”W x 1.78”H x 12”D (213 x 45 x 305 mm)
Tripod Mount
Optional Adapter for Head with 1/4-20 Thread
