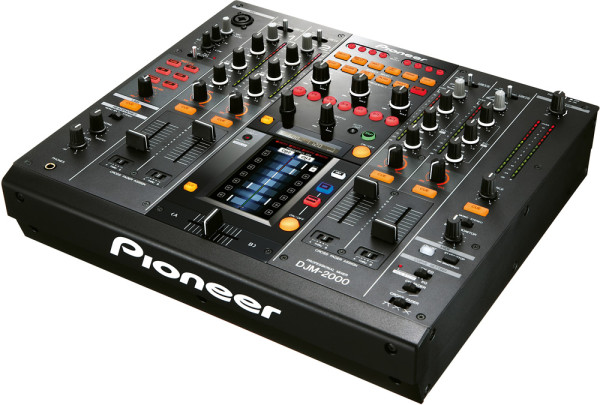

Table de mixage Pioneer DJM-2000

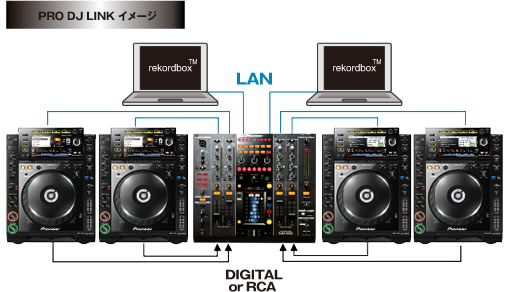

cd.jpg    Pioneer dévoile sa nouvelle table de mixage 4 voies, la DJM-2000, une nouvelle bestiole toujours accompagnée du Pro DJ Link pour connecter les platines CDJ-2000 par exemple.

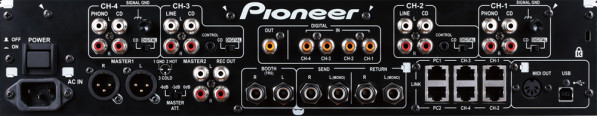

La DJM-2000 support 2 entrées phono en RCA, une entrée micro, 6 entrées CD / Lin en RCA, 4 entrées numériques coaxial, en sortie, master RCA et XLR, Booth RCA, Rec Out RCA et une sortie numérique coaxial. Au MusikMesse de Frankfurt le 24 mars prochain, sortie en juin pour 2999$.

Specifications

No. of Channels    Audio 4-channels, Mic, 1-channel
Input Terminals    CD/LINE x 6(RCA)
    PHONO x 2(RCA)
    DIGITAL IN x 4(COAXIAL)
    MIC x 1 (On top, XLR & 1/4-inch general-purpose phonex1)
Output Terminals    MASTER OUT x 2(RCA x 1 XLR x 1)
    BOOTH OUT x 1(1/4 inch PHONE)
    HEADPHONE MONITOR OUT x 1(On top, 1/4 inch PHONE)
    REC OUT x 1(RCA)
    DIGITAL OUT x 1(COAXIAL)
Other Terminals    SEND x 1(1/4 inch PHONE)
    RETURN x 1(1/4 inch PHONE)
    MIDI OUT x 1(5P DIN)
    CONTROL x 2( 3.5MINI JACK)
    USB B Port x 1
    LINK Terminal x 6 (LAN Cable)
Sampling Rate    96 kHz
D/A Converter    32 bit
A/D Converter    24 bit
Frequency Performance    20 Hz ~20 kHz
Total Harmonic Distortion    0.004% or less
Signal/Noise Ratio     107 dB (LINE)
Headroom     19 dB
Power Source     AC 120 V (60 Hz )
Power Consumption     42 W
Max External Dimensions    16.9 in (W) × 16.1 in (D) × 4.3 in (H)
Weight    18.7 lbs
